$399.99 when purchased online
Target Online store #3991
About this item
Highlights
- High performance in a super flat design
- Internal 440-watt peak Class D amplifier
- Compatible with every car audio system
- Plug & Play connection
- Extra full set of controls to fine-tune the in-car performance
Description

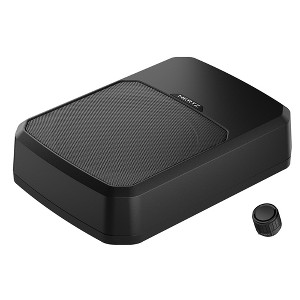

High performance in a super flat design
The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car.
Technical Specs
Size mm (in.): 200 (8)
Power Handling - Continuous W: 220
Power Handling - Peak W: 440
Impedance Ohm: 0.4
Design: Super Flat Sealed
Voice Coil Ø: 38.6 (1.52) mm (in.)
Frequency Response Hz: 32 ÷ 400
Magnet size D x d x h mm (in.): 110 x 45 x 17 (4.33 x 1.78 x 0.67)
Weight of one component kg (lb.): 4.3 (9.48)
Magnet: High Density Flux Ferrite
Cone: Pressed paper
Voice Coil Type: Copper
Power Supply
Operating voltage VDC (Fuse): 6.5 ÷ 18 (15A)
Start - Stop voltage VDC: 6
Idling current A (Power OFF): 260 m (1 m)
Consumption @ 14,4 VDC Max musical power A: 8.5
Remote IN Turn on VDC (Current): 4 (1 mA)
PRE input signal Turn ON VRMS: 10 mV
SPK input DC Turn ON VDC: 2
Amplifier Stage
Distortion - THD @ 100 Hz %: 0.15
Bandwidth Hz: 15 - 150
S/N ratio dBA: 100
Output power (RMS) @ 14,4 VDC, 1% THD W: 220
Signals Inputs / Filter
PRE input signal VRMS (impedance): 0.2 ÷ 5 (10kΩ)
SPK input signal VRMS (impedance): 1.2 ÷ 30 (6Ω)
LO-PASS Filter @ 24 dB Oct adjustable Hz: 50 ÷ 150
Subsonic Filter @ 24 dB Oct Fixed Hz: 15
Phase switch: 0 / 180°
Bass Boost @45 Hz dB: 0 ÷ 6
Sub remote volume control dB: 0 ÷ -15 (HRC 01 included)
Dimensions (Overall): 13.58 inches (H) x 3.11 inches (W) x 9.64 inches (D)
Weight: 10.0 pounds
Electronics Condition: New
Wireless Technology: No Wireless Technology
Battery: No Battery Used
Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 92610504
UPC: 8018823140607
Origin: made in the USA or imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 9.64 inches length x 3.11 inches width x 13.58 inches height
Estimated ship weight: 10 pounds
