$175.51 when purchased online
Target Online store #3991
About this item
Highlights
- Replacement 15" speaker for bass guitar or PA cabinet
- Solid low end, great for any style of music
- Diameter: 15"
- 4 Ohms
Description

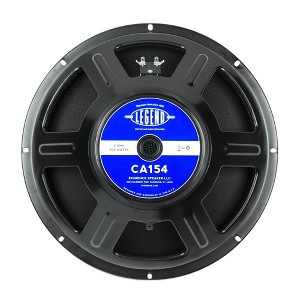

This table charts the specifications for the LEGEND CA154 speaker * Nominal Basket Diameter: 15-in , 381 mm. * Nominal Impedance: 4 Ohms. * Power Rating: * Watts: 300 W. * Music Program: 600 W. * Resonance: 51 Hz. * Usable Frequency Range: 45 Hz - 3 kHz. * Sensitivity: 96.9 dB. * Magnet Weight: 56 oz.. * Gap Height: 0.38-in , 9.7 mm. * Voice Coil Diameter: 2.5-in , 64 mm. * Thiele & Small Parameters. * Resonant Frequency (fs): 51 Hz. * DC Resistance (Re): 2.92 Ohms. * Coil Inductance (Le): 0.8m H. * Mechanical Q (Qms): 4.94. * Electromagnetic Q (Qes): 0.54. * Total Q (Qts): 0.49. * Compliance Equivalent Volume (Vas): 108.2 liters / 3.82 cu.ft.. * Peak Diaphragm Displacement Volume (Vd): 411.9 cc. * Mechanical Compliance of Suspension (Cms): 0.11 mm/N. * BL Product (BL): 12.21 T-M. * Diaphragm Mass Inc. Airload (MMs): 86 grams. * Efficiency Bandwidth Product (EBP): 94. * Maximum Linear Excursion (Xmax): 5 mm. * Surface Area of Cone (Sd): 823.7 cm2. * Maximum Mechanical Limit (Xlim): 8 mm. ----------------------------------- Recommended Enclosure Volume; * Sealed: Acceptable. * Vented: Acceptable. * Driver Volume Displaced: 0.128 cu.ft. / 3.62 liters. * Overall Diameter: 15.15-in , 384.8 mm. * Baffle Hole Diameter: 13.87-in , 352.3 mm. * Front Sealing Gasket: Yes. * Rear Sealing Gasket: N/A. * Mounting Holes Diameter: 0.25-in , 6.4mm. * Mounting Holes B.C.D.: 14.56-in , 369.8mm. * Depth: 6.25-in , 158.8 mm. * Net Weight: 11.9 lbs, 5.4 kg. * Shipping Weight: 14.1 lbs, 6.4 kgs. * Materials of Construction. * Coil Construction: Copper voice coil. * Coil Former: Polyimide former. * Magnet Composition: Ferrite magnet. * Core Details: Vented core. -----------------------------------. * Basket Materials: Pressed Steel basket. * Cone Composition: Treated paper cone. * Cone Edge Composition: Sealed cloth surround. * Dust Cap Composition: Treated paper dust cap.
Dimensions (Overall): 7.25 inches (H) x 16 inches (W) x 16 inches (D)
Weight: 14 pounds
Battery: No Battery Used
Warranty: 10 Day Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 92994646
UPC: 876358001484
Origin: imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 17 inches length x 17 inches width x 8.25 inches height
Estimated ship weight: 15 pounds
This item cannot be shipped to the following locations: APO/FPO, American Samoa, Guam, Northern Mariana Islands, Puerto Rico, United States Minor Outlying Islands, Virgin Islands, U.S., Alaska, Hawaii
item ships from third party seller: CLICK N SAVE LLC
Return details
This item can be returned to any Target store or Target.com.
This item must be returned within 30 days of the date it was purchased in store, shipped, delivered by a Shipt shopper, or made ready for pickup.
See the return policy for complete information.
